Ice Bath Chiller-D White
1HP/1.5HP/2HP OEM &Customized chiller
APP & Panel Control
Filtration & Ozone Function
Suitable for Outdoor & Indoor UseTemperature Range: 3'℃ (37.4°F)~42°℃(107.6°F)
Low Noise Operation
APP & Panel Control
Filtration & Ozone Function
Suitable for Outdoor & Indoor UseTemperature Range: 3'℃ (37.4°F)~42°℃(107.6°F)
Low Noise Operation
| Quantity: | |
|---|---|
Product Name | Ice Bath Chiller | ||||||
Horsepower | 0.8HP | 1HP | 1.5HP | 2HP | |||
Model No | QG-RA/15 | QG-RC/15 | QG-RA/25 | QG-RC/25 | QG-RA/35 | QG-RC/35 | QG-RC/50 |
Input Power Supply | 100-127V | 220-240V | 100-127V | 220-240V | 100-127V | 220-240V | 220-240V |
60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 50Hz | |
Input Power | 785W | 720W | 825W | 1050W | 1080W | 1550W | 1750W |
Compressor Power | 625W | 560W | 625W | 850W | 840W | 1315W | 1545W |
Cooling Capacity | 1500W | 1500W | 2405W | 850W | 3545W | 3500W | 4665W |
Heating Capacity | 2500W | 3600W | 4500W | 5500W | |||
Usage Environment | 0~45℃ | ||||||
Refrigerant | R32 | ||||||
Temperature | 3~42°C adjustable | ||||||
Ozone | Ozone Generator/UV | ||||||
Circulating Pump | Built-in Self-priming System | ||||||
Filter | External Installation | ||||||
Remote Control | IOS & Android APP, WIFI | ||||||
Moving Wheels | Yes | ||||||
Carry Handle | Yes | ||||||
Quick Connector | Yes | ||||||
Net Weight | 34KG | 36KG | 45KG | 56KG | |||
Product Size | 54x40x55cm | 54x40x55cm | 60x40x60cm | 65x40x65cm | |||
Certification | CE、CB、ETL、SAA、IPX4 | ||||||
Water Volume&cooling Time(23 To 5°C) | 100L≥2.7H | 200L≥2.7H | 200L≥2.4H | 200L≥1.6H | |||
200L≥5H | 400L≥5.8H | 400L≥5H | 400L≥3.5H | ||||
Product Overview
The Ice Bath Chiller D White is a premium cooling solution designed to maintain precise water temperatures for cold therapy, recovery, and industrial applications. With 7 models ranging from 0.8HP to 2HP, this chiller offers versatile performance for diverse needs. Its compact design (54x40x55cm to 65x40x65cm) and IPX4 certification ensure durability in indoor and outdoor settings, while the R32 refrigerant delivers energy-efficient cooling without compromising performance. The 3–42°C adjustable temperature range makes it ideal for athletes, healthcare facilities, and laboratories requiring controlled cold immersion environments.
Key specifications include:
Cooling Capacity: 1500W to 4665W
Heating Capacity: 2500W to 5500W
Input Power: 720W to 1750W
Certifications: CE, CB, ETL, SAA
Water Volume & Cooling Time: 100L to 400L with cooling times as fast as 1.6 hours (200L to 5°C) .
Key Features
Precision Temperature Control

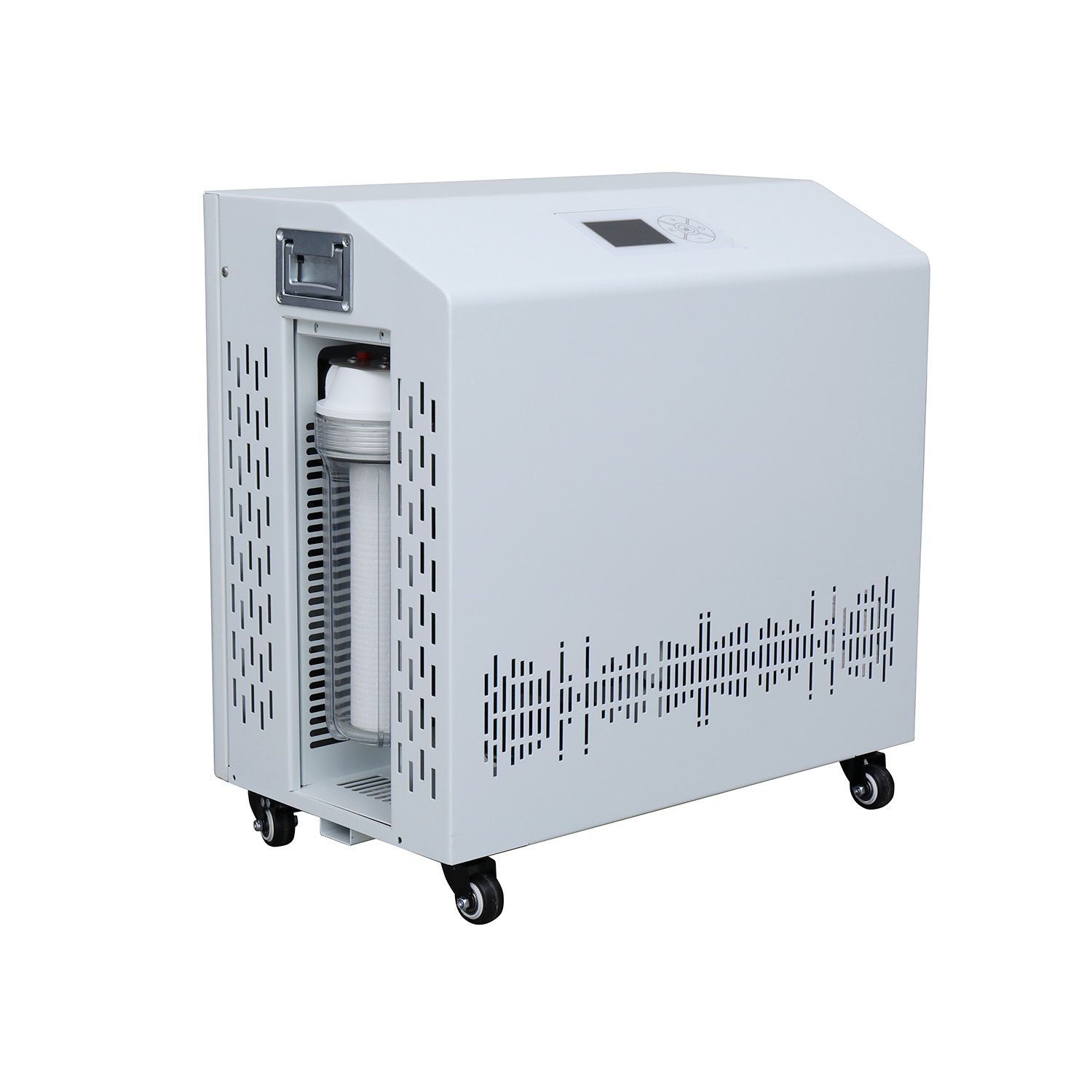

The chiller maintains temperatures within 3–42°C, allowing users to customize cold therapy sessions or industrial processes. Its self-priming circulating pump ensures consistent water flow, while the external filter removes debris for clean, crystal-clear water .
Energy-Efficient Design
Equipped with R32 refrigerant, the chiller reduces energy consumption by up to 30% compared to traditional systems. The dual voltage compatibility (100–127V/60Hz or 220–240V/50Hz) ensures global usability without performance loss .
Smart Technology
The iOS & Android app enables remote monitoring and control of temperature, filtration, and ozone settings. Users can schedule sessions, receive alerts, and track energy usage for hassle-free operation .
Safety & Durability
Built with CE, ETL, and IPX4 certifications, the chiller is protected against electrical hazards and water splashes. The ozone generator/UV sterilization system ensures water purity, eliminating the need for harsh chemicals .
Portability & Easy Installation

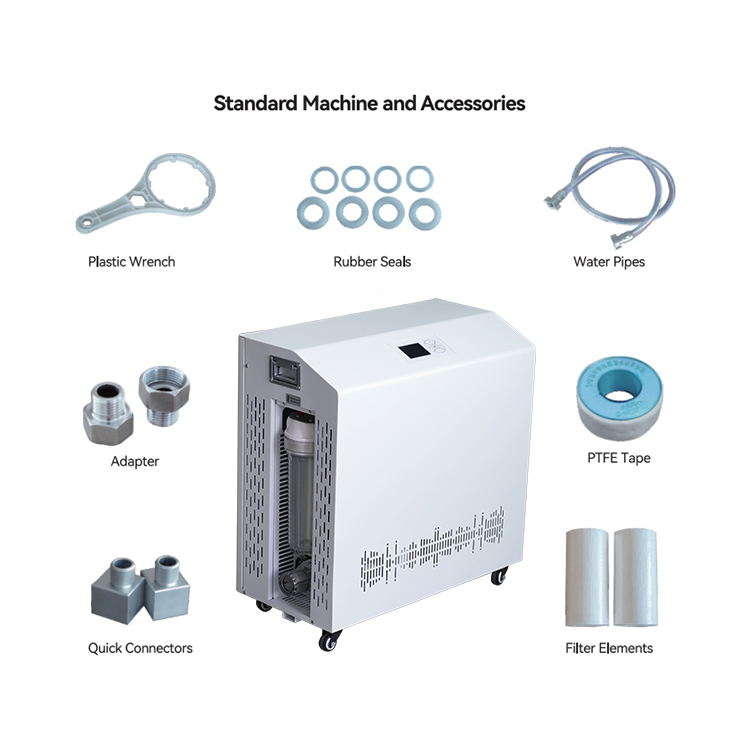

Features like moving wheels, carry handles, and quick connectors simplify relocation and setup. The chiller requires minimal maintenance, with filter replacement intervals based on water quality .
Applications
Athletic Recovery
Ideal for post-workout recovery, the chiller reduces inflammation and muscle soreness by maintaining cold water immersion at 5–15°C. Athletes and fitness enthusiasts rely on its fast cooling times (e.g., 200L cooled to 5°C in 1.6–5 hours) to enhance performance and reduce downtime .
Healthcare & Rehabilitation
Hospitals and clinics use the chiller for cryotherapy, pain management, and post-surgical recovery. Its precise temperature control supports therapeutic protocols, while the ozone sterilization ensures hygienic conditions .
Industrial Cooling
Laboratories, food processing plants, and manufacturing facilities benefit from its high cooling capacity (up to 4665W) for maintaining stable temperatures in sensitive processes. The chiller’s durable construction withstands 24/7 operation in industrial environments .
Home & Wellness
Home users can enjoy the benefits of cold therapy without manual ice replenishment. The compact design fits seamlessly into outdoor spaces, while the app control allows customization from anywhere .
FAQ
Q: How long does it take to cool water to 5°C?
A: Cooling time varies by model and water volume. For example, the 2HP QG-RC/50 cools 200L from 23°C to 5°C in 1.6 hours, while the 0.8HP QC-RA/15 takes 2.7 hours for 100L .
Q: What certifications does the chiller hold?
A: The chiller is certified for safety and performance under CE, CB, ETL, and SAA standards, ensuring compliance with international regulations .
Q: Can I control the chiller remotely?
A: Yes. The iOS & Android app allows real-time monitoring, temperature adjustments, and scheduling. It also provides alerts for maintenance or system issues .
