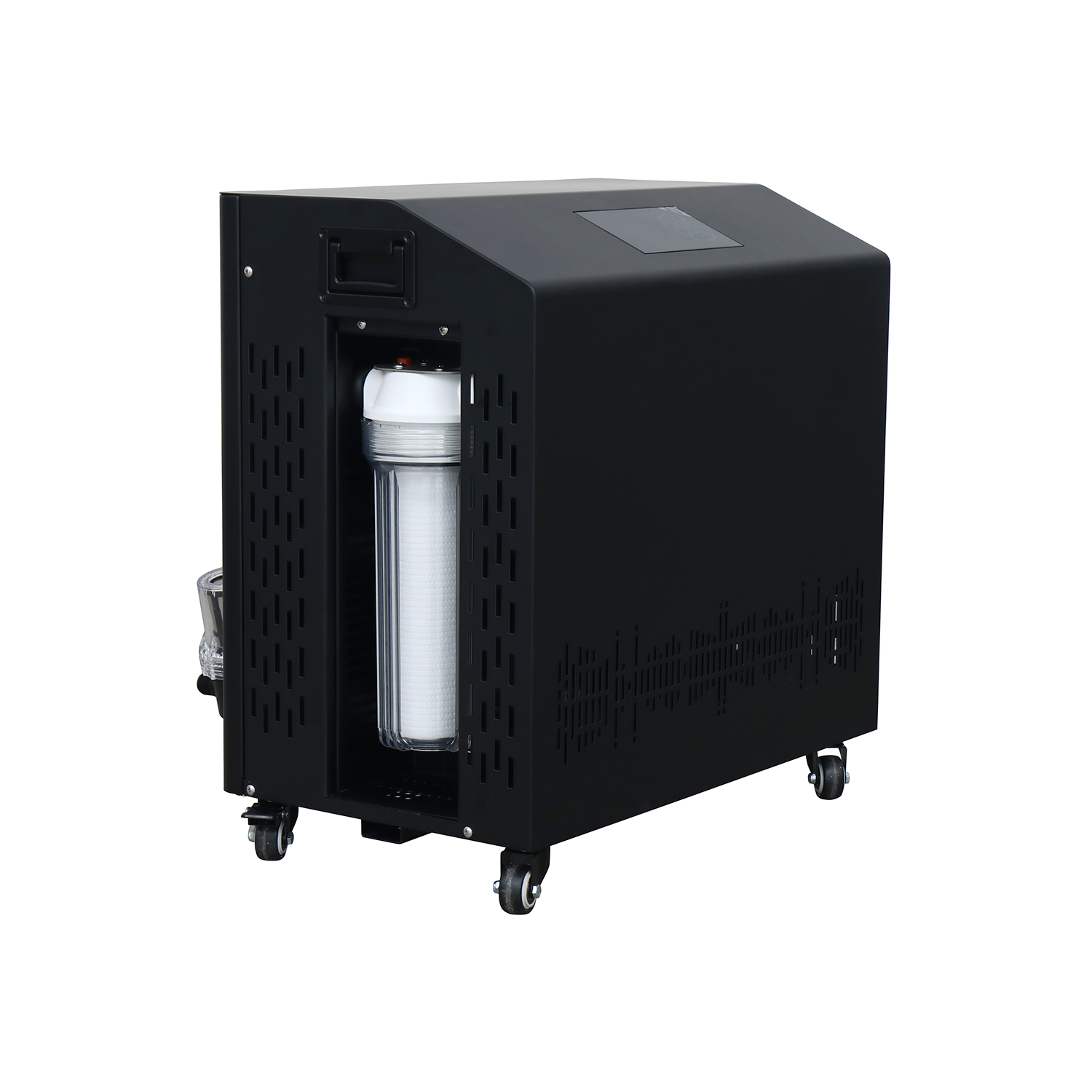

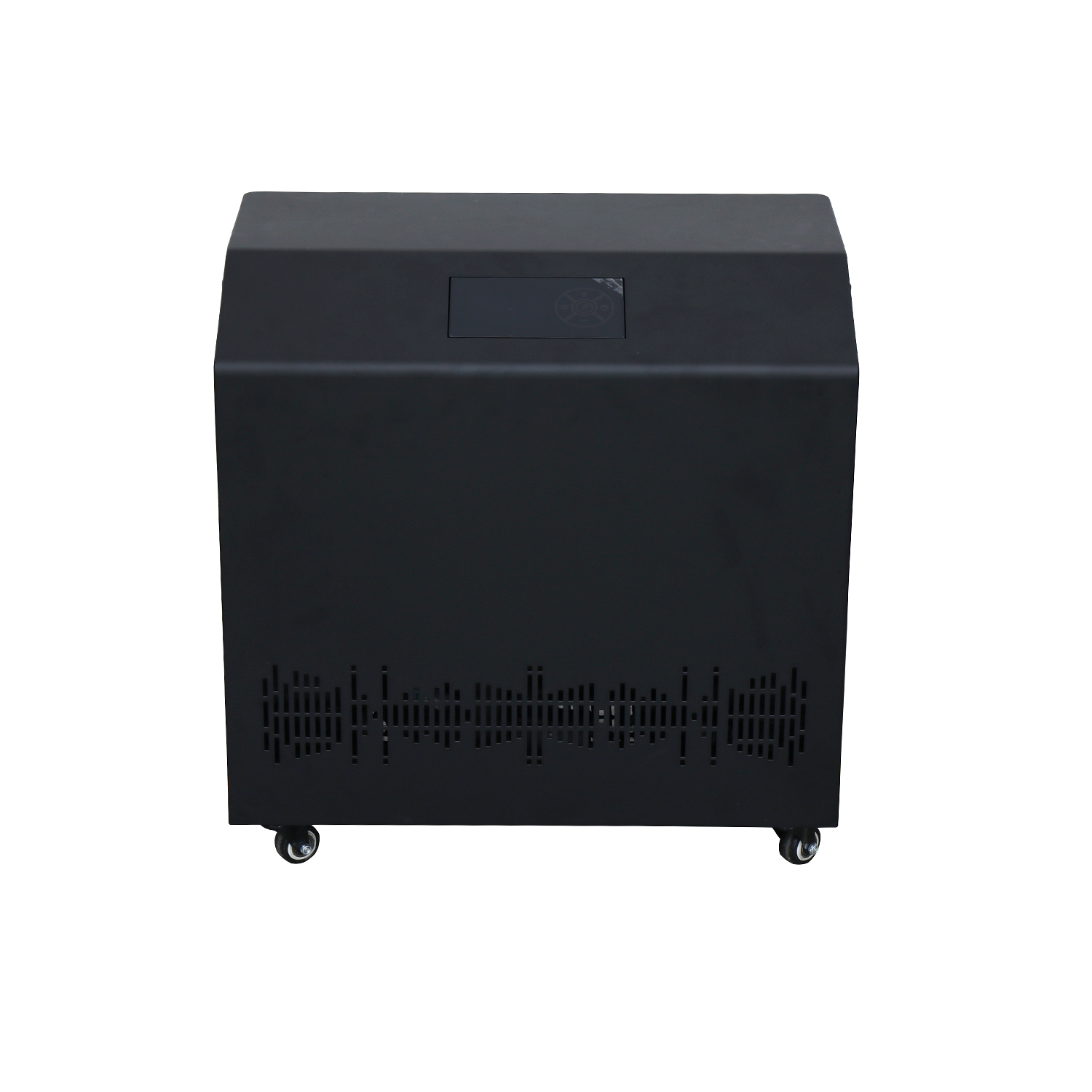

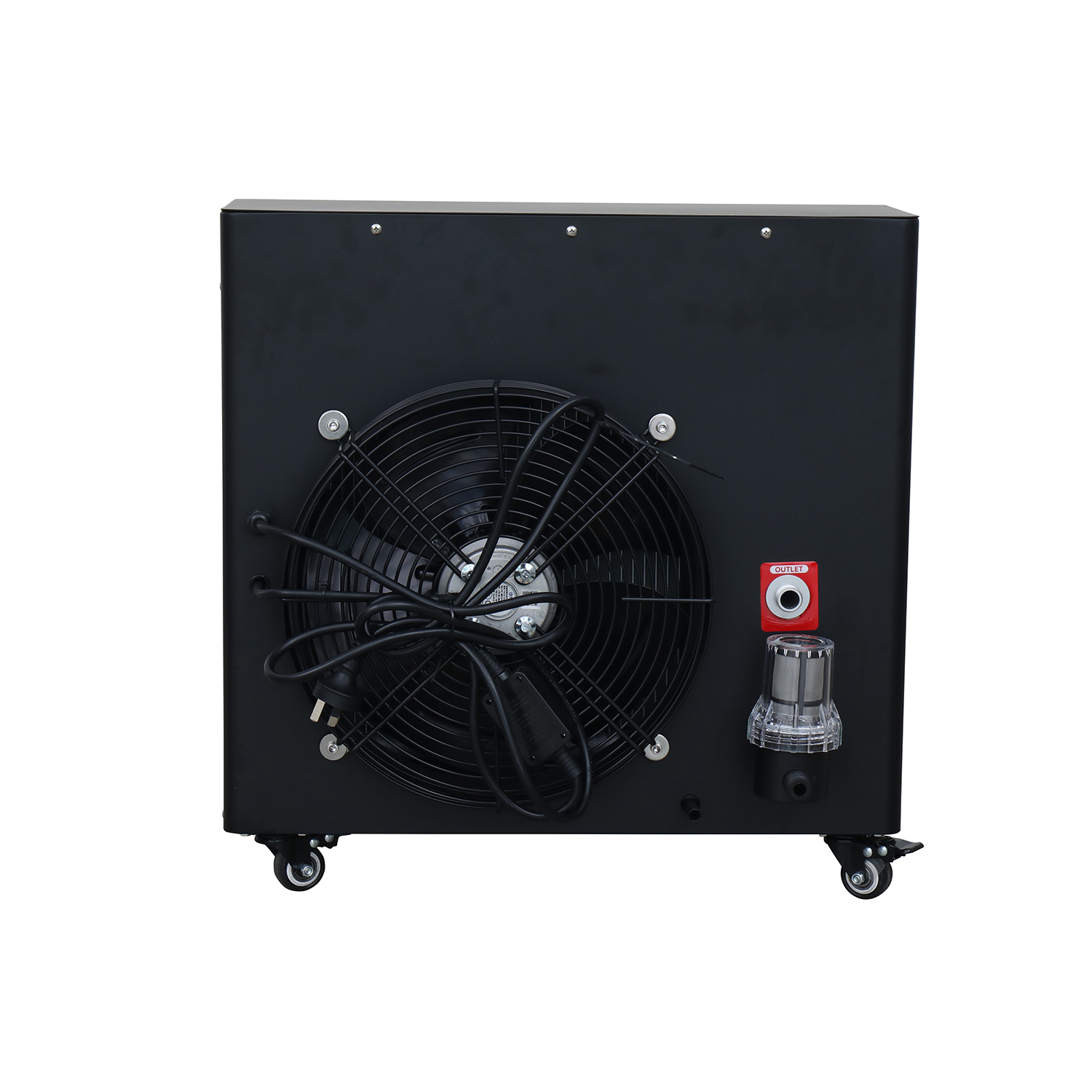

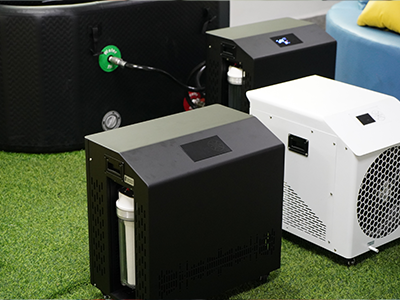

Ice Bath Chiller-D Black
1HP/1.5HP/2HP OEM &Customized chiller
APP & Panel Control
Filtration & Ozone Function
Suitable for Outdoor & Indoor UseTemperature Range: 3'℃ (37.4°F)~42°℃(107.6°F)
Low Noise Operation
APP & Panel Control
Filtration & Ozone Function
Suitable for Outdoor & Indoor UseTemperature Range: 3'℃ (37.4°F)~42°℃(107.6°F)
Low Noise Operation
| Quantity: | |
|---|---|
Product Name | Ice Bath Chiller | ||||||
Horsepower | 0.8HP | 1HP | 1.5HP | 2HP | |||
Model No | QG-RA/15 | QG-RC/15 | QG-RA/25 | QG-RC/25 | QG-RA/35 | QG-RC/35 | QG-RC/50 |
Input Power Supply | 100-127V | 220-240V | 100-127V | 220-240V | 100-127V | 220-240V | 220-240V |
60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 50Hz | |
Input Power | 785W | 720W | 825W | 1050W | 1080W | 1550W | 1750W |
Compressor Power | 625W | 560W | 625W | 850W | 840W | 1315W | 1545W |
Cooling Capacity | 1500W | 1500W | 2405W | 850W | 3545W | 3500W | 4665W |
Heating Capacity | 2500W | 3600W | 4500W | 5500W | |||
Usage Environment | 0~45℃ | ||||||
Refrigerant | R32 | ||||||
Temperature | 3~42℃ adjustable | ||||||
Ozone | Ozone Generator/UV | ||||||
Circulating Pump | Built-in Self-priming System | ||||||
Filter | External Installation | ||||||
Remote Control | IOS & Android APP, WIFI | ||||||
Moving Wheels | Yes | ||||||
Carry Handle | Yes | ||||||
Quick Connector | Yes | ||||||
Net Weight | 34KG | 36KG | 45KG | 56KG | |||
Product Size | 54x40x55cm | 54x40x55cm | 60x40x60cm | 65x40x65cm | |||
Certification | CE、CB、ETL、SAA、IPX4 | ||||||
Water Volume&cooling Time(23 To 5℃) | 100L≥2.7H | 200L≥2.7H | 200L≥2.4H | 200L≥1.6H | |||
200L≥5H | 400L≥5.8H | 400L≥5H | 400L≥3.5H | ||||
Product Overview
The Ice Bath Chiller D Black combines cutting-edge technology with energy-efficient performance to maintain water temperatures between 3°C to 42°C (37°F to 107°F) . Available in multiple horsepower (HP) configurations (0.8HP, 1HP, 1.5HP, 2HP), each model is tailored to different cooling capacities and water volumes. For example, the QC-RA/15 (0.8HP) cools 100L of water from 23°C to 5°C in ≥2.7 hours, while the QG-RC/50 (2HP) achieves the same for 200L in ≥1.6 hours . This versatility makes it suitable for small-scale setups, such as home gyms, and large commercial installations like sports recovery centers.
Powered by R32 refrigerant, the chiller offers superior energy efficiency and a lower environmental impact compared to traditional refrigerants like R410A . Its compact design (ranging from 54x40x55cm to 65x40x65cm) and built-in self-priming circulating pump ensure easy installation and portability, with moving wheels and carry handles for convenient relocation .
Key Features

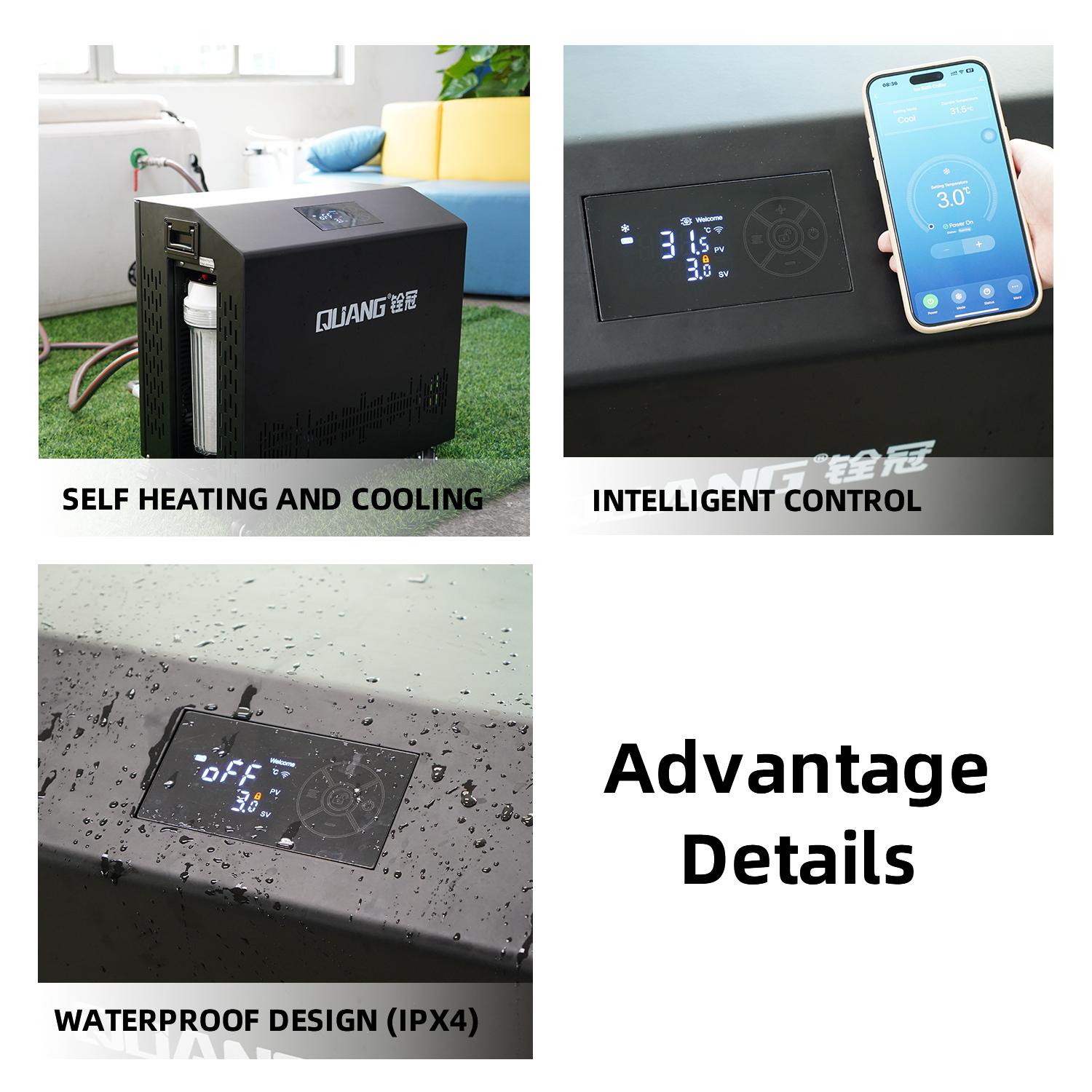

Precision Temperature Control

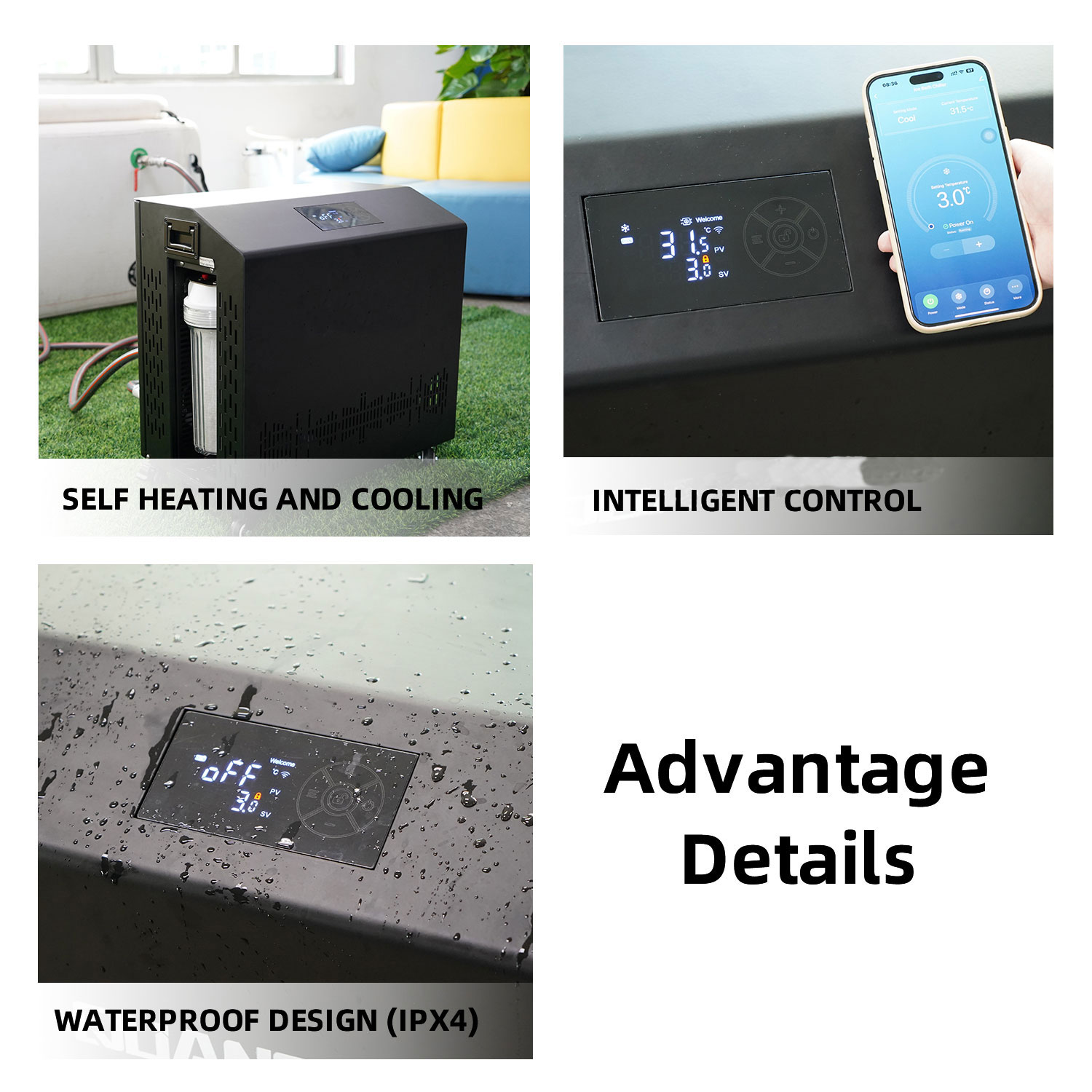

The chiller maintains ±0.5°C accuracy across its 3–42°C adjustable range, ideal for therapeutic cold therapy, industrial processes, or laboratory applications . Its smart digital interface allows real-time monitoring and adjustment via iOS & Android APPs with Wi-Fi connectivity, enabling remote operation and automation .
Efficient Cooling & Heating
Equipped with a high-performance compressor (up to 1545W for the 2HP model), the chiller delivers rapid cooling and heating. For instance, the QC-RA/25 (1HP) provides 2405W cooling capacity and 3600W heating capacity, ensuring quick temperature recovery even in high-demand environments .

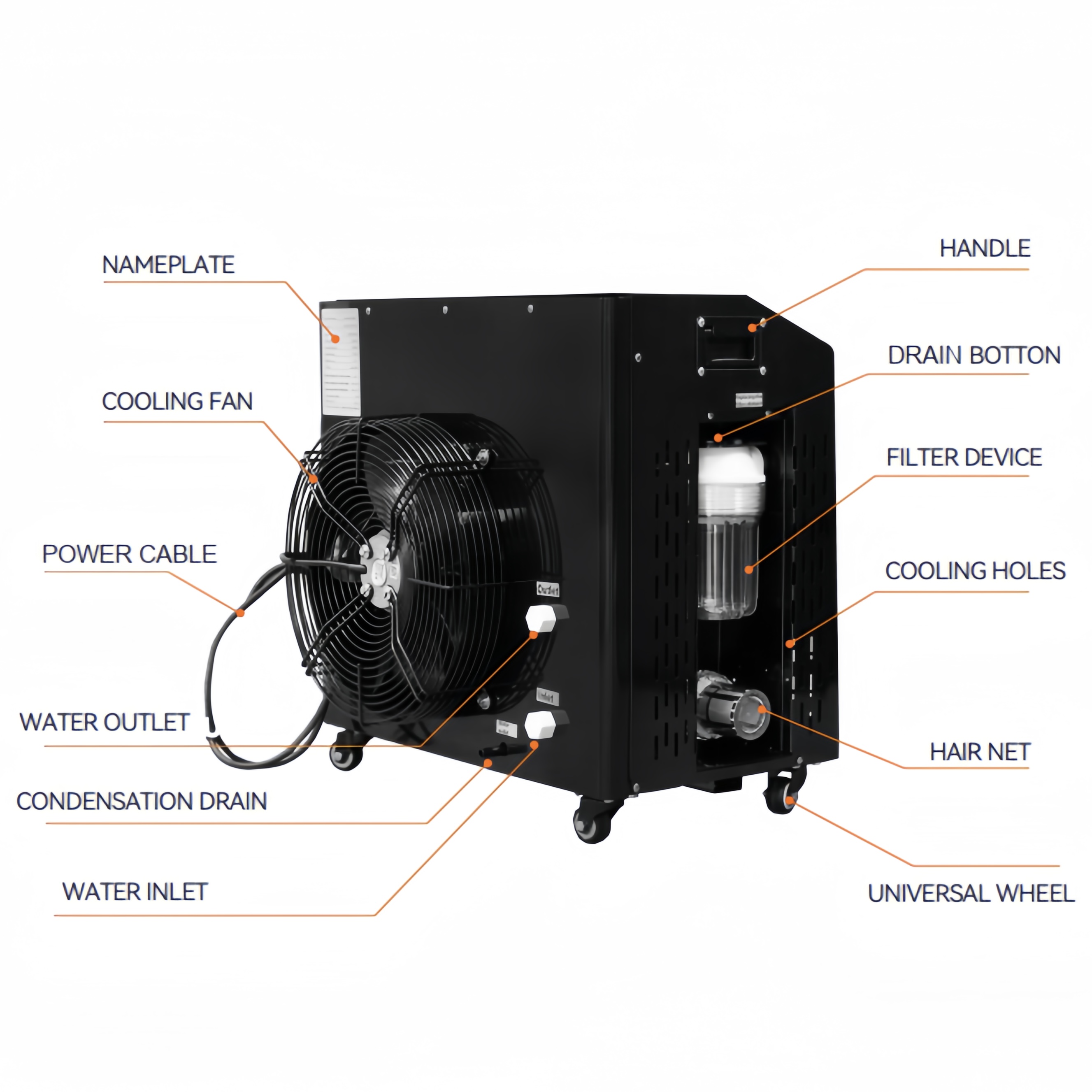

Integrated Sanitation & Filtration
A dual ozone generator/UV system ensures water purity by eliminating bacteria and contaminants, reducing the need for chemical treatments . The external filter (easily installable) captures debris, prolonging the system’s lifespan and maintaining water quality .
Certified Safety & Durability
The chiller meets international standards with CE, CB, ETL, SAA, and IPX4 certifications, ensuring compliance with safety, electromagnetic compatibility, and water resistance requirements . Its rugged construction and IPX4-rated enclosure protect against splashes, making it suitable for indoor and outdoor use .
User-Friendly Design
Features like quick connectors, self-priming pump, and modular components simplify installation and maintenance. The chiller's ergonomic handles and wheels enhance mobility, while its quiet operation (≤55dB) ensures minimal disruption in any setting .
Applications
The Ice Bath Chiller D Black excels in diverse industries and scenarios:
Sports & Recovery: Ideal for athletes and fitness enthusiasts to reduce inflammation, accelerate muscle recovery, and improve circulation post-workout .
Industrial Processes: Used in manufacturing, food and beverage production, and chemical industries to maintain precise temperatures for machinery, reactors, or cooling lines .
Medical & Rehabilitation: Supports cryotherapy for pain management, arthritis relief, and post-surgical recovery .
Laboratory & Research: Ensures stable temperatures for scientific experiments, cell culture, and pharmaceutical storage .
Residential & Commercial Use: Perfect for home spas, hotels, and wellness centers seeking reliable cold plunge solutions .
FAQ
Q: What is the ideal water volume for each chiller model?
A: Models like the QC-RA/15 (0.8HP) suit 100–200L tubs, while the QG-RC/50 (2HP) is designed for 200–400L systems. Always match the chiller's cooling capacity (e.g., 4665W for QG-RC/50) to your tub size and climate .
Q: Can the chiller be used outdoors?
A: Yes, the IPX4-rated enclosure protects against splashes, but avoid direct exposure to rain or extreme temperatures outside the 0–45°C usage range .
Q: How energy-efficient is the R32 refrigerant?
A: R32 systems use 20% less refrigerant than R410A, reducing operational costs and environmental impact. The chiller's energy-efficient compressor further minimizes power consumption .
