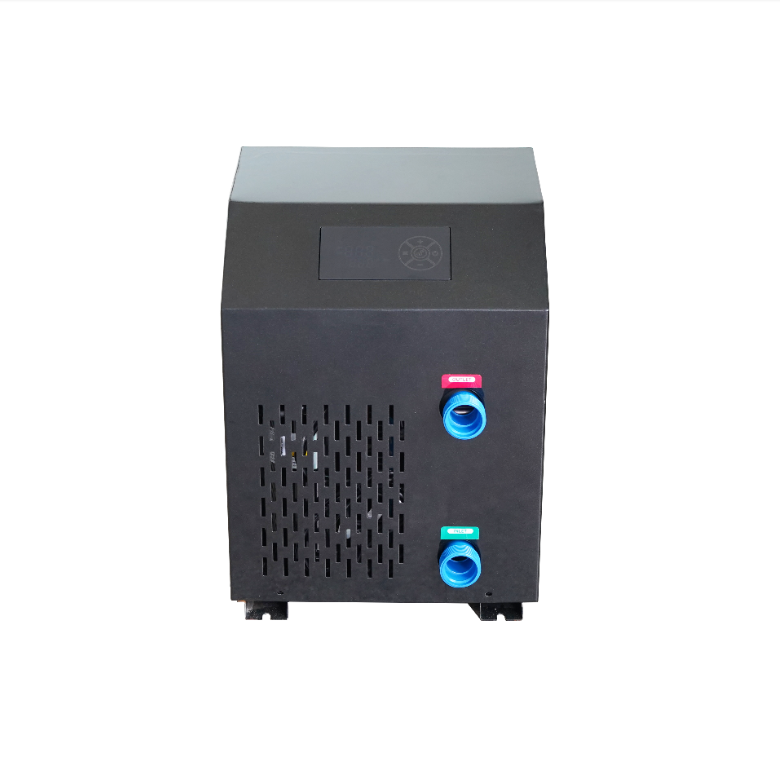

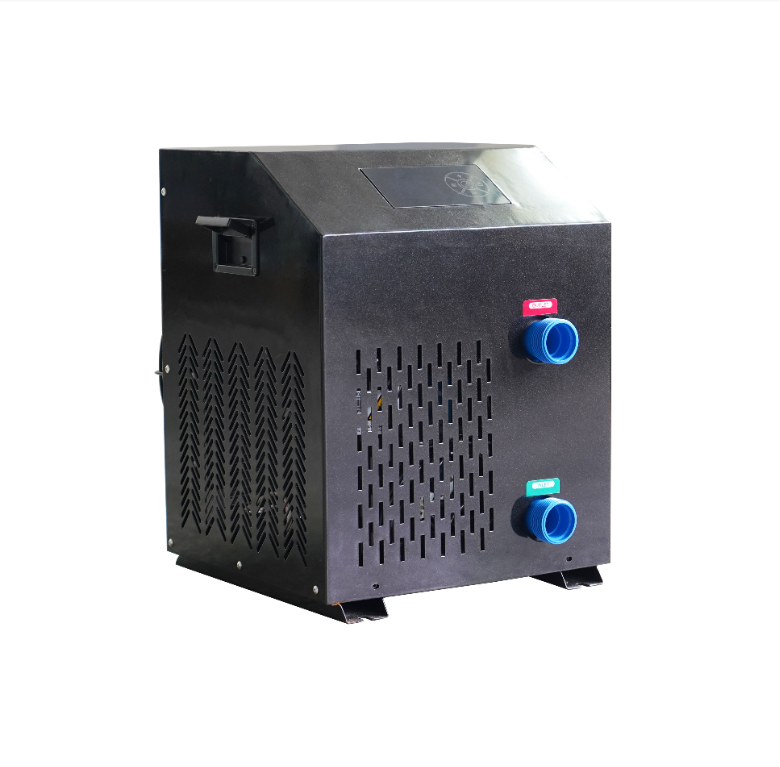

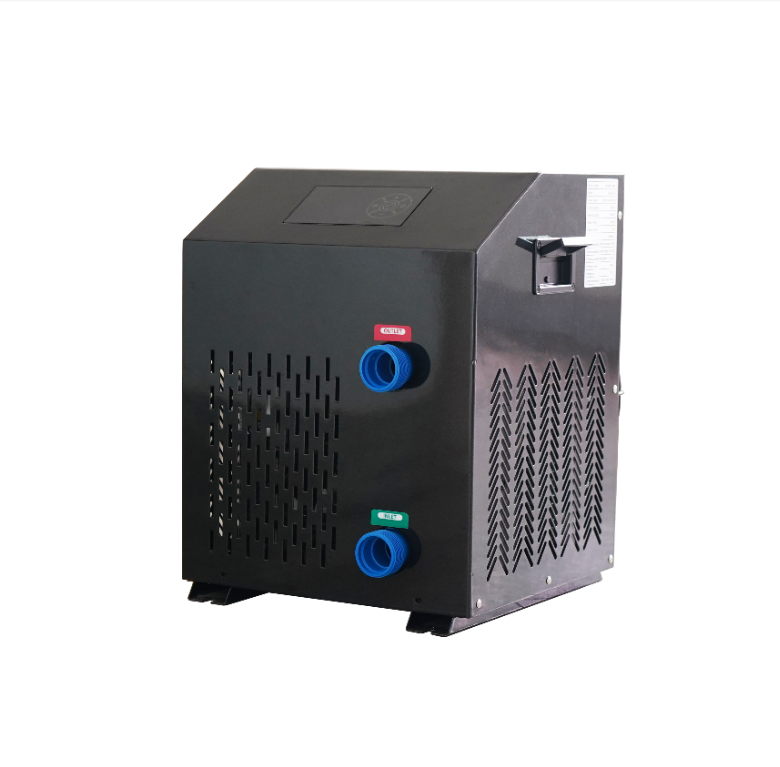

Ice Bath Chiller-C Black
OEM &Customized chiller
APP & Panel Control
1-2 Year Warranty Available
Custom Logo / Housing / Color Available
APP & Panel Control
1-2 Year Warranty Available
Custom Logo / Housing / Color Available
| Quantity: | |
|---|---|
Product Name | Ice Bath Chiller | ||||||
Horsepower | 0.8HP | 1HP | 1.5HP | 2HP | |||
Model No | QG-RA/15 | QG-RC/15 | QG-RA/25 | QG-RC/25 | QG-RA/35 | QG-RC/35 | QG-RC/50 |
Input Power Supply | 100-127V | 220-240V | 100-127V | 220-240V | 100-127V | 220-240V | 220-240V |
60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 50Hz | |
Input Power | 785W | 720W | 825W | 1050W | 1080W | 1550W | 1750W |
Compressor Power | 625W | 560W | 625W | 850W | 840W | 1315W | 1545W |
Cooling Capacity | 1500W | 1500W | 2405W | 850W | 3545W | 3500W | 4665W |
Heating Capacity | 2500W | 3600W | 4500W | 5500W | |||
Usage Environment | 0~45℃ | ||||||
Refrigerant | R32 | ||||||
Temperature | 3~42°C adjustable | ||||||
Ozone | Ozone Generator/UV | ||||||
Circulating Pump | Built-in Self-priming System | ||||||
Filter | External Installation | ||||||
Remote Control | IOS & Android APP, WIFI | ||||||
Moving Wheels | Yes | ||||||
Carry Handle | Yes | ||||||
Quick Connector | Yes | ||||||
Net Weight | 34KG | 36KG | 45KG | 56KG | |||
Product Size | 54x40x55cm | 54x40x55cm | 60x40x60cm | 65x40x65cm | |||
Certification | CE、CB、ETL、SAA、IPX4 | ||||||
Water Volume&cooling Time(23 To 5°C) | 100L≥2.7H | 200L≥2.7H | 200L≥2.4H | 200L≥1.6H | |||
200L≥5H | 400L≥5.8H | 400L≥5H | 400L≥3.5H | ||||
Product Overview
The Ice Bath Chiller-C Black is a high-performance cooling system designed to maintain precise water temperatures for cold immersion therapy, recovery, and industrial applications. Engineered with advanced refrigeration technology and user-centric features, this chiller offers OEM and customization options, including custom logos, housing colors, and configurations, making it ideal for businesses and individuals seeking tailored solutions. With APP & Panel Control, users can monitor and adjust settings remotely via iOS or Android devices, ensuring convenience and flexibility. Backed by a 1-2 year warranty, the Chiller-C Black combines durability with CE, CB, ETL, SAA, and IPX4 certifications, guaranteeing safety and reliability across diverse environments.
Key specifications include 3–42°C adjustable temperature range, R32 refrigerant for energy efficiency, and a built-in self-priming circulation pump for seamless water flow. The chiller supports water volumes from 100L to 400L, with cooling times as fast as 2.4 hours for 200L (23°C to 5°C). Its compact design (54x40x55 cm to 65x40x65 cm) and moving wheels/carry handles enable easy installation and portability, while external filters and ozone generators ensure water purity and hygiene.
Features
1. Smart Control & Connectivity
The Chiller-C Black integrates iOS & Android APP and WIFI control, allowing users to set temperatures, monitor performance, and schedule operations remotely. The intuitive touch panel offers real-time data on water flow, temperature, and filtration status, enhancing user experience and reducing manual adjustments.
2. Efficient Cooling & Heating
Equipped with 0.5–2HP compressors and R32 refrigerant, the chiller delivers rapid cooling (up to 5545W cooling capacity) and heating (up to 5500W heating capacity), adapting to varying environmental conditions. Its energy-efficient design minimizes power consumption while maintaining stability, even in hot climates.
3. Hygiene & Safety
A built-in ozone generator and external filter system eliminate microorganisms and particles, ensuring clean, odor-free water. The chiller’s IPX4 water resistance and GFCI-protected power supply safeguard against electrical hazards, while overload and overheating protection mechanisms prevent damage.
4. Durability & Customization
Constructed with industrial-grade materials, the Chiller-C Black withstands heavy use and extreme temperatures (0–45°C). Customizable options include logo branding, housing color, and voltage compatibility (100–240V, 50/60Hz), catering to global markets and specific user needs.
5. Easy Maintenance
Quick-connect hoses, replaceable filters, and a self-priming pump simplify setup and maintenance. The chiller’s compact footprint and removable panels allow for effortless access to internal components, reducing downtime and operational costs.
Applications
1. Athletic Recovery
Ideal for athletes and fitness enthusiasts, the Chiller-C Black accelerates muscle repair, reduces inflammation, and enhances post-workout recovery by maintaining cold water immersion at optimal temperatures (3–15°C).
2. Medical & Wellness
Used in clinics and spas for cryotherapy, rehabilitation, and pain management, the chiller supports therapeutic cold exposure protocols, promoting circulation and mental clarity.
3. Industrial & Laboratory Use
Its precise temperature control (±0.5°C) makes it suitable for scientific research, chemical processes, and food/beverage cooling, ensuring accuracy and consistency.
4. Home & Commercial Settings
Perfect for residential cold plunges, gyms, and wellness centers, the Chiller-C Black offers scalable solutions for small (100L) to large (400L) water volumes, balancing performance with affordability.
FAQ
Q: What is the temperature range of the Ice Bath Chiller-C Black?
A: The chiller maintains water temperatures between 3–42°C, adjustable via the APP or touch panel. This range supports both cold therapy (3–15°C) and warm recovery sessions.
Q: How long does it take to cool 200L of water from 23°C to 5°C?
A: Depending on the model, cooling times range from 2.4–2.7 hours for 200L. Larger volumes (e.g., 400L) may take up to 5.8 hours, influenced by ambient temperature and insulation.
Q: Is the chiller compatible with outdoor use?
A: Yes, the Chiller-C Black has an IPX4 rating for water resistance and can operate in temperatures up to 45°C. However, it is recommended to use it in covered outdoor areas to prolong lifespan.
Q: Does the chiller include water filtration?
A: Yes, the system features an external filter and ozone generator to remove debris and sanitize water, reducing the need for chemical treatments.
Q: Can I customize the chiller’s appearance?
A: Yes, custom logos, housing colors, and voltage configurations are available. Contact the manufacturer for OEM inquiries.
Q: What certifications does the chiller hold?
A: The Chiller-C Black is certified for safety and performance under CE, CB, ETL, SAA, and IPX4 standards, ensuring compliance with international regulations.
Q: Is technical support available?
A: Yes, a 1-2 year warranty covers parts and labor. Remote diagnostics and video guidance are provided for troubleshooting.
