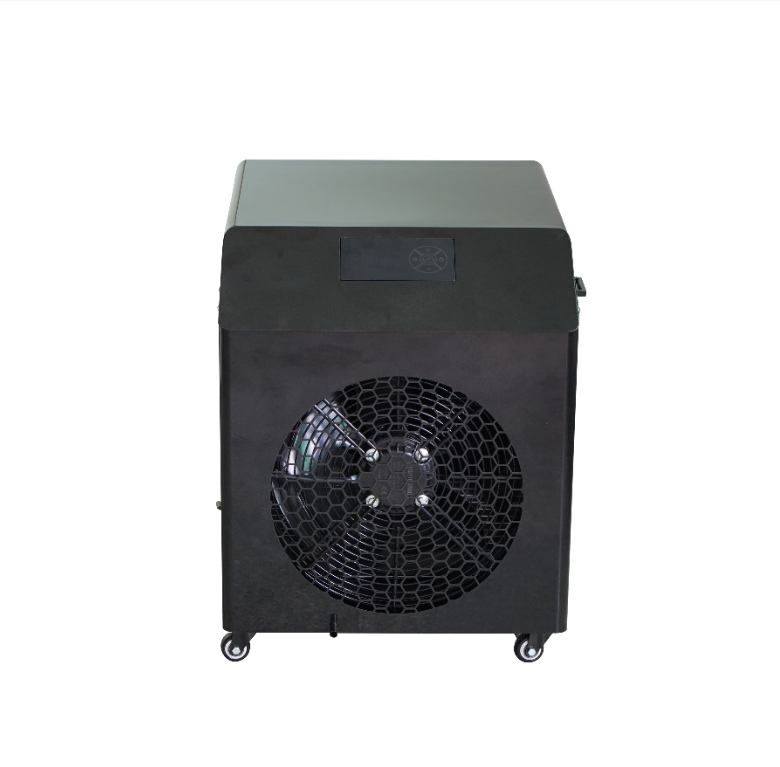

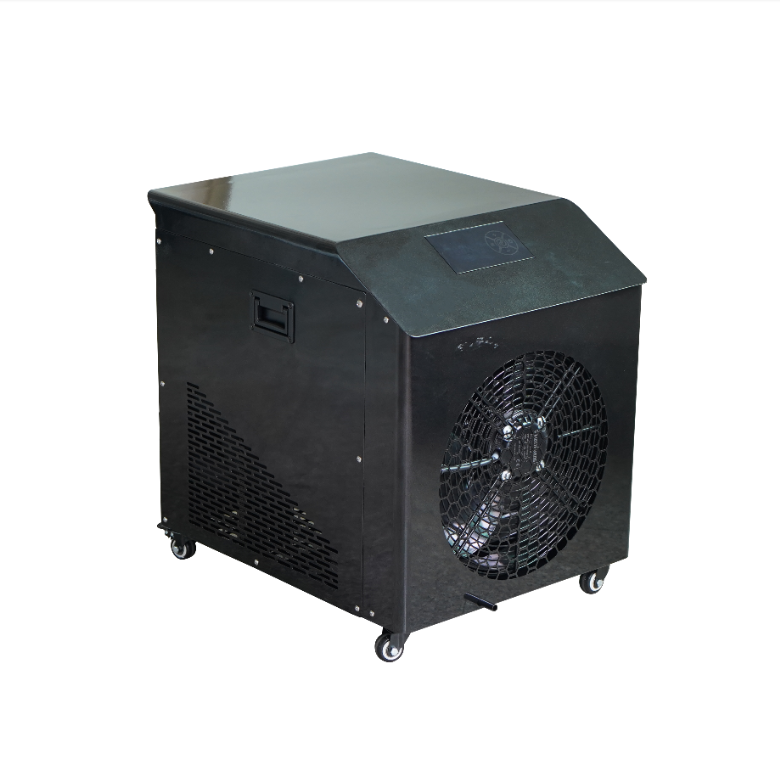

Ice Bath Chiller-B Black
0.8HP/1HP/1.5HP/OEM &Customized chiller
APP & Panel Control
Filtration & Ozone Function
Suitable for Outdoor & Indoor UseTemperature Range: 3'℃ (37.4°F)~42°℃(107.6°F)
Low Noise Operation
APP & Panel Control
Filtration & Ozone Function
Suitable for Outdoor & Indoor UseTemperature Range: 3'℃ (37.4°F)~42°℃(107.6°F)
Low Noise Operation
| Quantity: | |
|---|---|
Product Name | Ice Bath Chiller | ||||||
Horsepower | 0.8HP | 1HP | 1.5HP | 2HP | |||
Model No | QG-RA/15 | QG-RC/15 | QG-RA/25 | QG-RC/25 | QG-RA/35 | QG-RC/35 | QG-RC/50 |
Input Power Supply | 100-127V | 220-240V | 100-127V | 220-240V | 100-127V | 220-240V | 220-240V |
60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 50Hz | |
Input Power | 785W | 720W | 825W | 1050W | 1080W | 1550W | 1750W |
Compressor Power | 625W | 560W | 625W | 850W | 840W | 1315W | 1545W |
Cooling Capacity | 1500W | 1500W | 2405W | 850W | 3545W | 3500W | 4665W |
Heating Capacity | 2500W | 3600W | 4500W | 5500W | |||
Usage Environment | 0~45℃ | ||||||
Refrigerant | R32 | ||||||
Temperature | 3~42°C adjustable | ||||||
Ozone | Ozone Generator/UV | ||||||
Circulating Pump | Built-in Self-priming System | ||||||
Filter | External Installation | ||||||
Remote Control | IOS & Android APP, WIFI | ||||||
Moving Wheels | Yes | ||||||
Carry Handle | Yes | ||||||
Quick Connector | Yes | ||||||
Net Weight | 34KG | 36KG | 45KG | 56KG | |||
Product Size | 54x40x55cm | 54x40x55cm | 60x40x60cm | 65x40x65cm | |||
Certification | CE、CB、ETL、SAA、IPX4 | ||||||
Water Volume&cooling Time(23 To 5°C) | 100L≥2.7H | 200L≥2.7H | 200L≥2.4H | 200L≥1.6H | |||
200L≥5H | 400L≥5.8H | 400L≥5H | 400L≥3.5H | ||||
Product Overview
The Ice Bath Chiller-B Black combines cutting-edge technology with versatility, offering a temperature range of 3°C (37.4°F) to 42°C (107.6°F) . This flexibility makes it suitable for applications ranging from industrial cooling to scientific research. Its compact design and portable features—including moving wheels and a carry handle—enable easy relocation, while the external filtration system and ozone generator ensure water quality remains optimal for extended use.
Certified with CE, CB, ETL, SAA, and IPX4 , this chiller meets international safety and performance standards, ensuring compliance across global markets. The low noise operation (<65 dB) makes it suitable for noise-sensitive environments, while the built-in self-priming circulating pump guarantees efficient water circulation without manual intervention.
Key Features
Dual Control System: APP & Panel Operation
The chiller supports iOS and Android APP control via Wi-Fi, allowing users to monitor and adjust settings remotely . The intuitive digital panel provides real-time data on temperature, cooling capacity, and system status, ensuring precise control at all times.

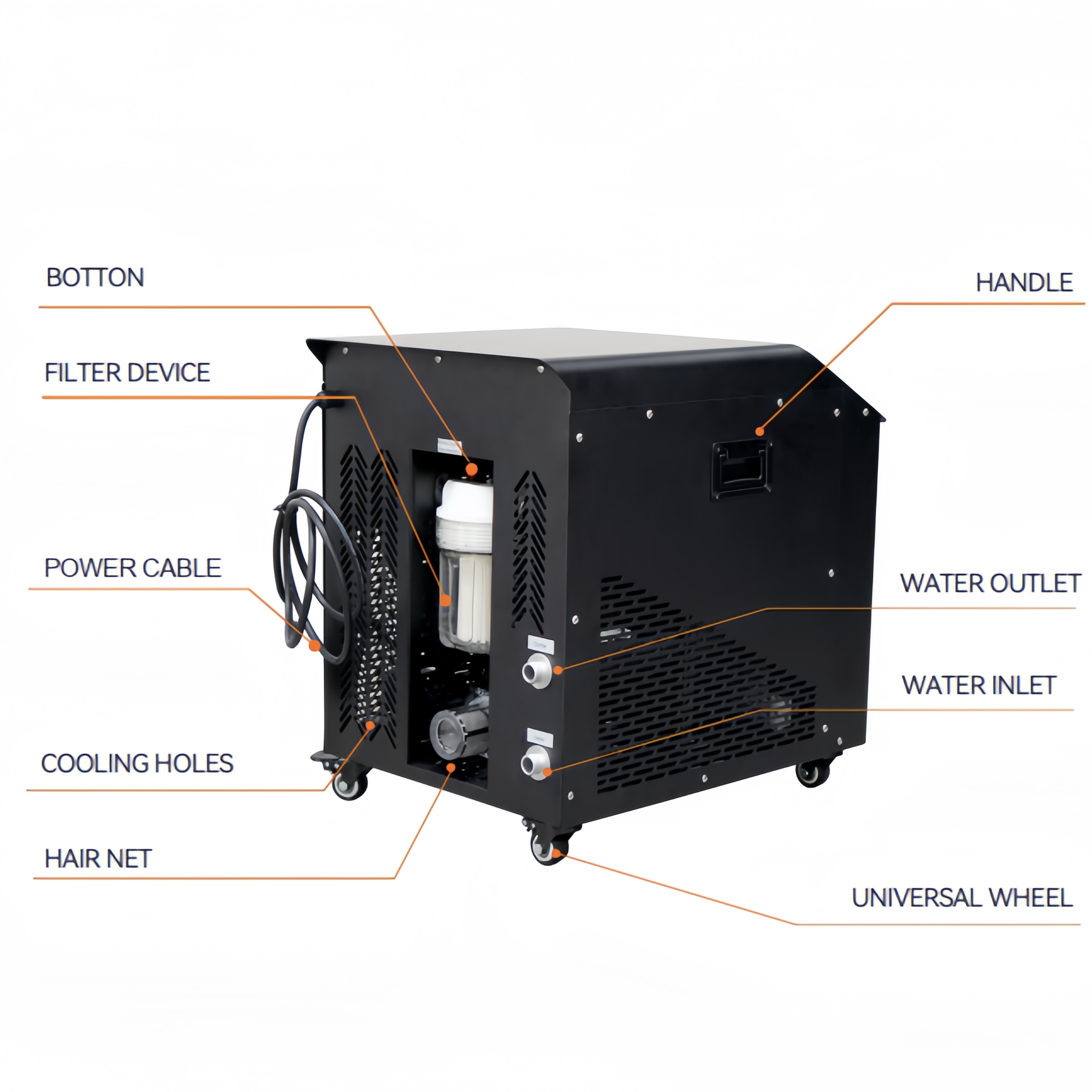

Filtration & Ozone Functionality
Equipped with an external filtration system, the chiller removes contaminants and particles, prolonging equipment lifespan. The ozone generator (Ozone Generator/uV) sanitizes water, reducing bacterial growth and maintaining hygiene—a critical feature for medical and food processing applications .
High Efficiency & Energy Savings
The R32 refrigerant (low GWP) ensures eco-friendly operation, while the scroll compressors deliver high cooling capacity with minimal energy consumption. For example, the 1.5HP model achieves 3,545W cooling capacity at 1,550W input power , offering superior performance-to-energy ratio.
Portable & Durable Design

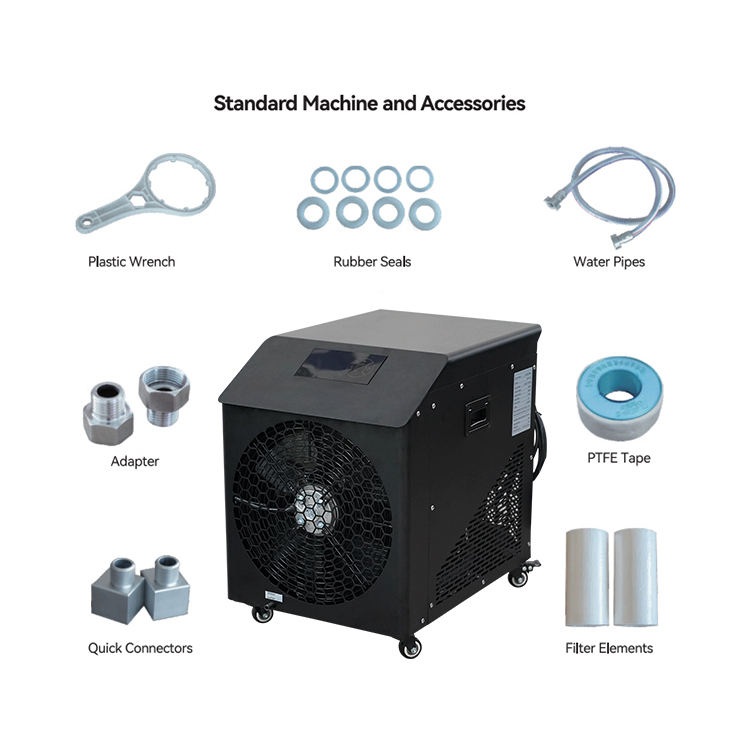

Constructed with corrosion-resistant materials and featuring IPX4 water resistance, the chiller withstands harsh environments. The quick connectors simplify installation, while the modular design allows for easy maintenance and customization.
Precision Temperature Control
The chiller maintains ±0.5°C accuracy, making it suitable for applications requiring strict temperature stability. For instance, the 2HP model cools 200L of water from 23°C to 5°C in ≤1.6 hours , demonstrating its rapid cooling capabilities.
Applications
Sports & Recovery: Ideal for cold therapy tubs, supporting athletes’ post-workout recovery by reducing inflammation and muscle soreness .
Medical & Laboratory: Ensures precise temperature control for blood storage, pharmaceutical production, and scientific experiments.
Industrial Cooling: Cools machinery, lasers, and electronics in manufacturing facilities, preventing overheating and improving efficiency.
Food & Beverage: Maintains optimal temperatures for brewing, dairy processing, and cold storage.
Outdoor Events: Portable design allows use in temporary setups, such as outdoor medical stations or emergency cooling units.
FAQ
Q: What is the recommended ambient temperature for operation?
A: The chiller functions optimally in environments between 0°C and 45°C , ensuring reliable performance in both hot and cold climates.
Q: How does the ozone generator work?
A: The ozone generator produces ozone (O₃), a powerful oxidizer that neutralizes bacteria and organic contaminants in water. This feature is particularly beneficial for applications requiring sterile conditions.
Q: Can the chiller be used outdoors?
A: Yes, the IPX4-rated design protects against splashing water, making it suitable for covered outdoor use. However, direct exposure to rain or extreme weather is not recommended.
Q: What certifications does the chiller hold?
A: The chiller is certified with CE, CB, ETL, SAA, and IPX4 , ensuring compliance with safety, electromagnetic compatibility, and environmental standards across Europe, North America, and Australia.
Q: How long does it take to cool water?
A: Cooling time varies by model and water volume. For example, the 1.5HP model cools 200L of water from 23°C to 5°C in ≤2.4 hours . Refer to the technical data sheet for detailed specifications.
Q: Is remote monitoring available?
A: Yes, the chiller supports Wi-Fi connectivity and iOS/Android APP control, enabling users to monitor and adjust settings from anywhere .
