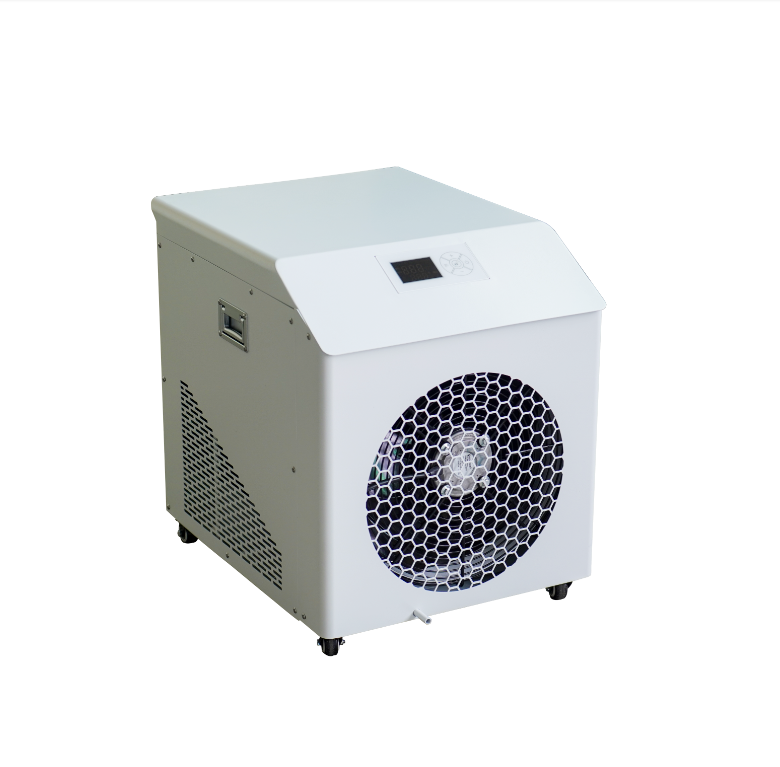

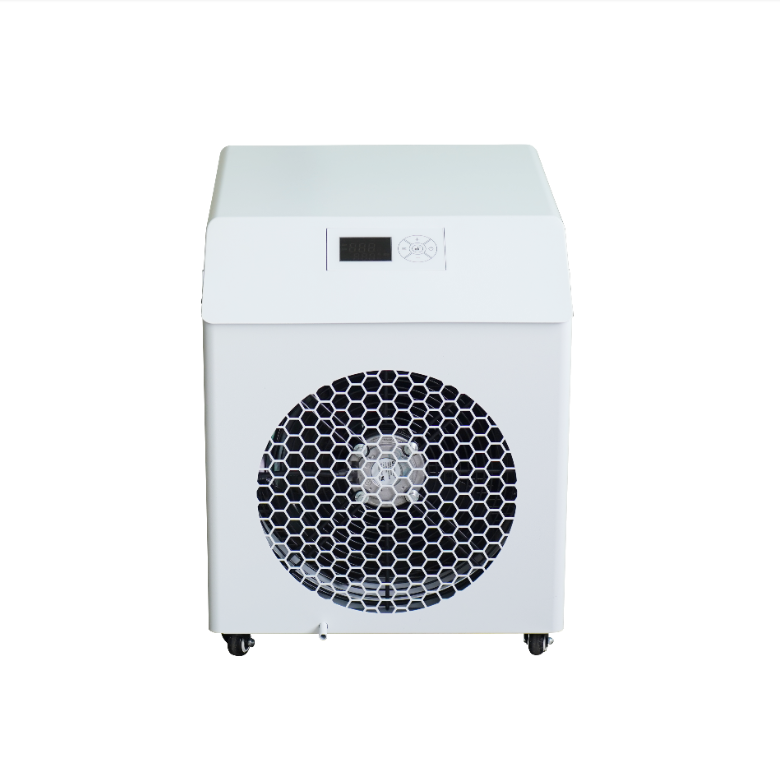

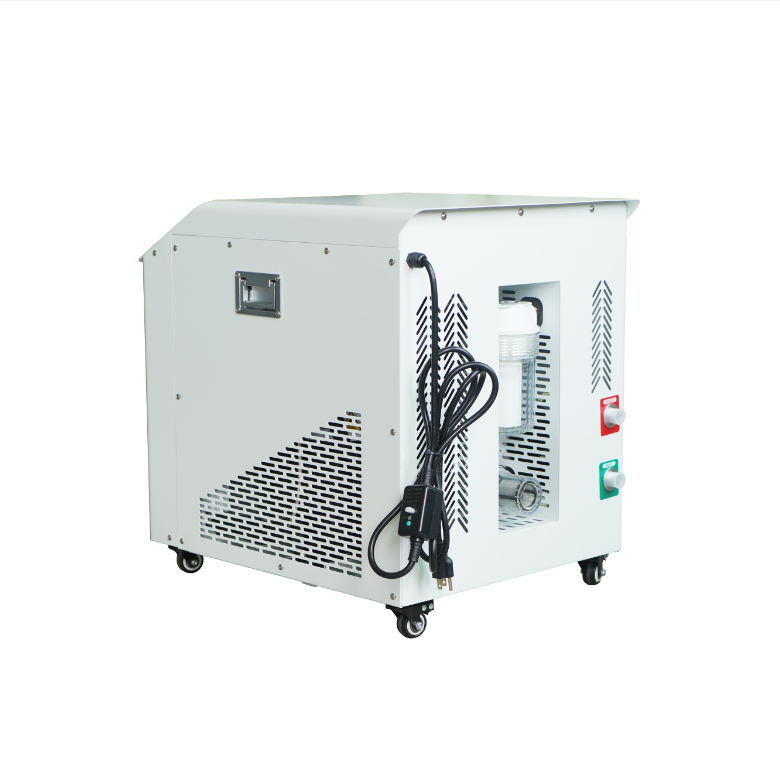

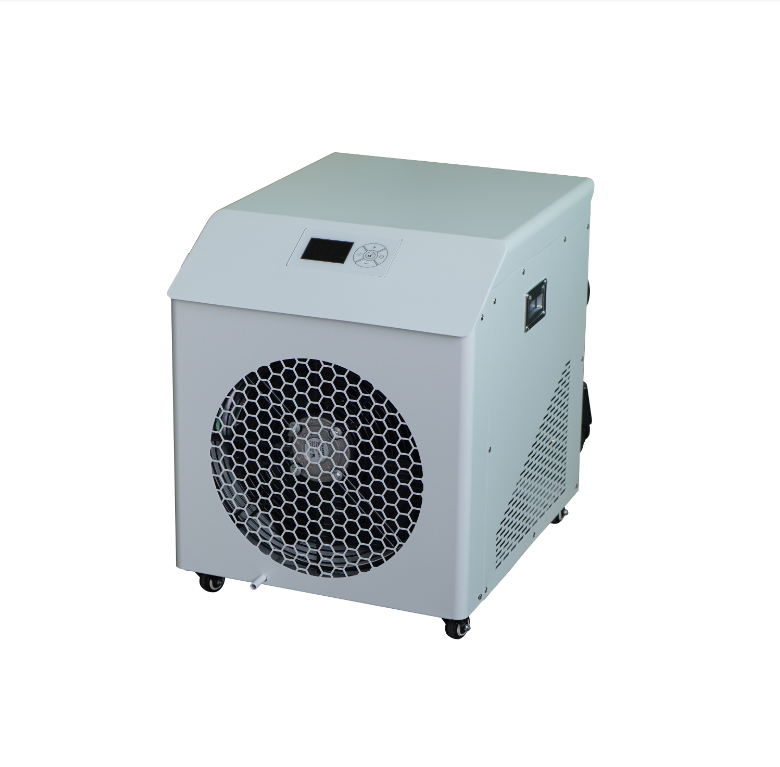

Ice Bath Chiller-B White
0.8HP/1HP/1.5HP/OEM &Customized chiller
APP & Panel Control
Filtration & Ozone Function
Suitable for Outdoor & Indoor UseTemperature Range: 3'℃ (37.4°F)~42°℃(107.6°F)
Low Noise Operation
APP & Panel Control
Filtration & Ozone Function
Suitable for Outdoor & Indoor UseTemperature Range: 3'℃ (37.4°F)~42°℃(107.6°F)
Low Noise Operation
| Quantity: | |
|---|---|
Product Name | Ice Bath Chiller | ||||||
Horsepower | 0.8HP | 1HP | 1.5HP | 2HP | |||
Model No | QG-RA/15 | QG-RC/15 | QG-RA/25 | QG-RC/25 | QG-RA/35 | QG-RC/35 | QG-RC/50 |
Input Power Supply | 100-127V | 220-240V | 100-127V | 220-240V | 100-127V | 220-240V | 220-240V |
60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 50Hz | |
Input Power | 785W | 720W | 825W | 1050W | 1080W | 1550W | 1750W |
Compressor Power | 625W | 560W | 625W | 850W | 840W | 1315W | 1545W |
Cooling Capacity | 1500W | 1500W | 2405W | 850W | 3545W | 3500W | 4665W |
Heating Capacity | 2500W | 3600W | 4500W | 5500W | |||
Usage Environment | 0~45℃ | ||||||
Refrigerant | R32 | ||||||
Temperature | 3~42°C adjustable | ||||||
Ozone | Ozone Generator/UV | ||||||
Circulating Pump | Built-in Self-priming System | ||||||
Filter | External Installation | ||||||
Remote Control | IOS & Android APP, WIFI | ||||||
Moving Wheels | Yes | ||||||
Carry Handle | Yes | ||||||
Quick Connector | Yes | ||||||
Net Weight | 34KG | 36KG | 45KG | 56KG | |||
Product Size | 54x40x55cm | 54x40x55cm | 60x40x60cm | 65x40x65cm | |||
Certification | CE、CB、ETL、SAA、IPX4 | ||||||
Water Volume&cooling Time(23 To 5°C) | 100L≥2.7H | 200L≥2.7H | 200L≥2.4H | 200L≥1.6H | |||
200L≥5H | 400L≥5.8H | 400L≥5H | 400L≥3.5H | ||||
Product Overview
The Ice Bath Chiller B White is a high-performance cooling system designed for industrial, commercial, and residential applications, offering precise temperature control and energy-efficient operation. Available in 0.8HP, 1HP, 1.5HP, and 2HP models (e.g., QC-RA/15, QC-RC/S, QG-RA/25, QC-RC/25, QG-RA/35, QC-RC/35, QC-RC/S0), this chiller is engineered to maintain water temperatures between 3°C (37.4°F) and 42°C (107.6°F) . It features CE, CB, ETL, SAA, and IPX4 certifications, ensuring compliance with international safety and quality standards for both indoor and outdoor use .
With a compact design (dimensions ranging from 54x40x55cm to 65x40x65cm) and moving wheels, the chiller is highly portable and easy to install. It supports 100-127V/60Hz or 220-240V/50Hz power inputs, making it suitable for global markets. The R32 refrigerant enhances energy efficiency while reducing environmental impact .
Key Features
Smart APP & Panel Control
The chiller integrates iOS and Android APP connectivity via Wi-Fi, allowing users to monitor and adjust temperature settings remotely. The intuitive control panel offers real-time data on cooling/heating capacity, pump status, and filtration system performance . This feature is ideal for businesses requiring 24/7 temperature management or users seeking convenience in home or outdoor setups.
Dual Filtration & Ozone Functionality

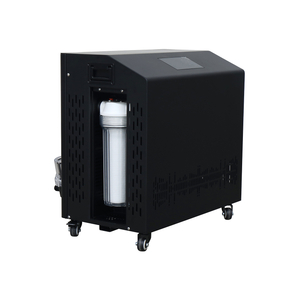

Equipped with an external filtration system and built-in ozone generator/UV sterilizer, the chiller ensures crystal-clear water by removing debris and eliminating bacteria. The filtration system is easy to maintain, with replaceable cartridges for long-term reliability . This dual functionality reduces water contamination risks, making it suitable for medical, laboratory, and wellness applications.
Energy-Efficient Performance
The chiller’s low noise operation (≤65 dB) and high-efficiency compressor deliver cooling capacities up to 4665W and heating capacities up to 5500W. For example, the 1.5HP model can cool 200L of water from 23°C to 5°C in as fast as 2.4 hours, while the 2HP model achieves the same for 400L in 3.5 hours . The built-in self-priming pump ensures consistent water circulation without manual intervention.
Durable Design & Portability
Constructed with IPX4-rated waterproof casing, the chiller withstands harsh weather conditions. Its quick connectors, carry handle, and moving wheels facilitate seamless installation and relocation. The net weight ranges from 34KG to 56KG, balancing sturdiness with maneuverability .
Applications

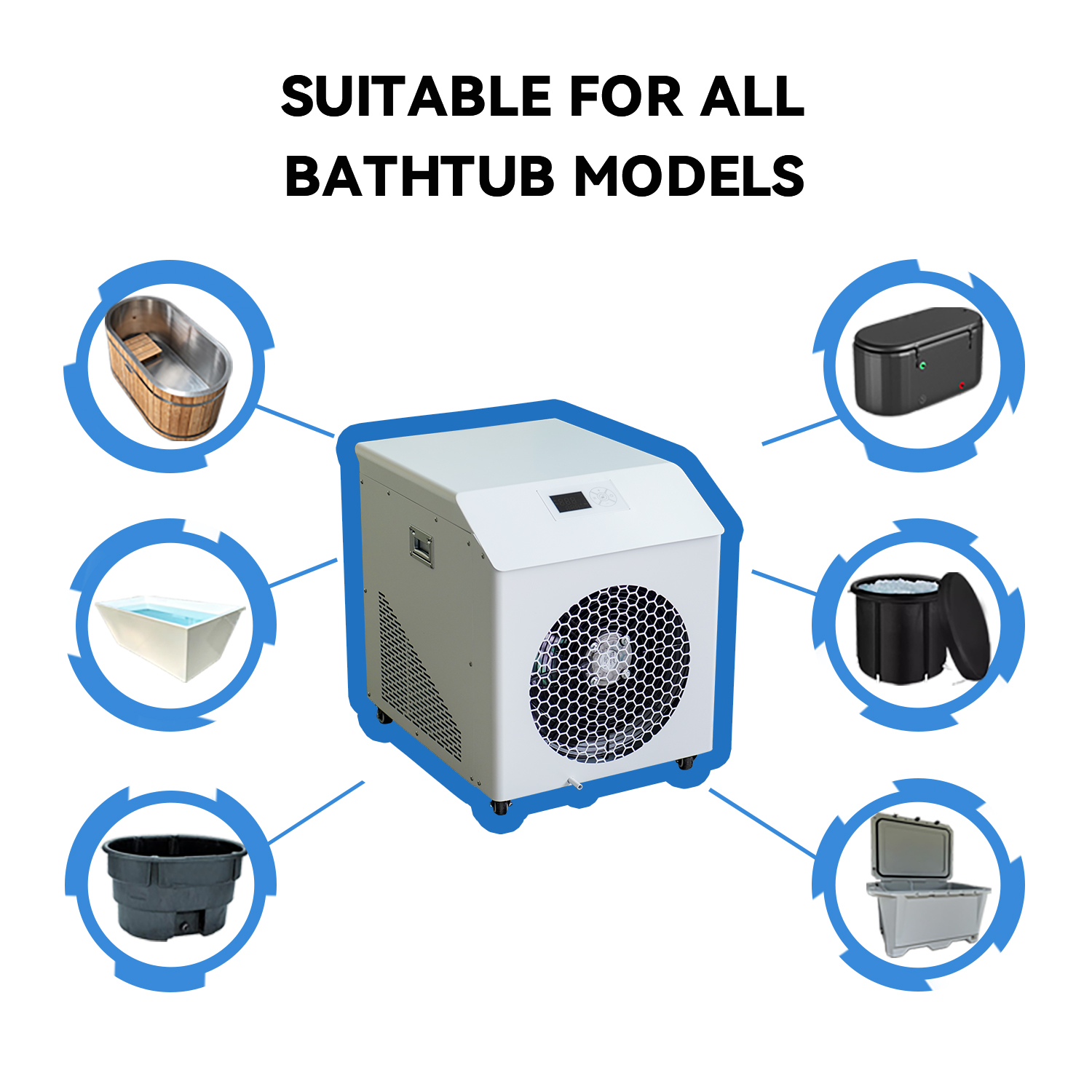

Athletic Recovery: Ideal for cold plunge tubs to reduce inflammation and accelerate post-workout recovery .
Medical & Laboratory Use: Maintains precise temperatures for blood storage, reagent cooling, and tissue preservation.
Wellness Centers: Enhances cold therapy sessions with adjustable temperatures and clean water .
Outdoor Events: Portable design enables use at sports competitions, festivals, or remote locations .
FAQ
Q: What is the temperature range of the Ice Bath Chiller B White?
A: The chiller maintains water temperatures between 3°C (37.4°F) and 42°C (107.6°F), adjustable via the APP or control panel .
Q: Is the chiller suitable for outdoor use?
A: Yes, it has an IPX4 waterproof rating and operates in ambient temperatures from 0°C to 45°C . However, avoid direct exposure to freezing conditions to prevent damage.
Q: How long does it take to cool water?
A: Cooling time depends on the model and water volume. For example, the 1.5HP model cools 200L from 23°C to 5°C in 2.4 hours, while the 2HP model achieves this for 400L in 3.5 hours .
